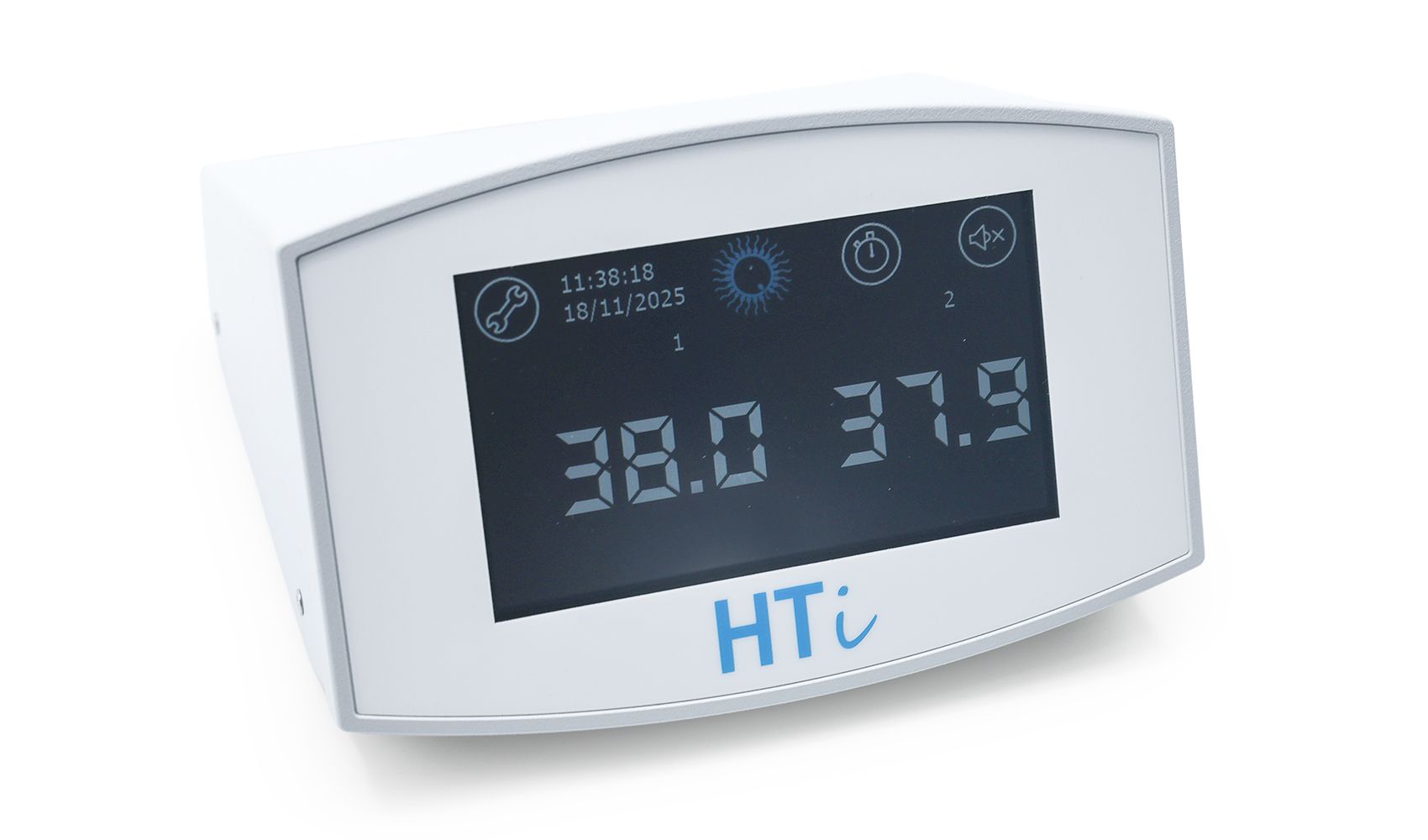

Control unit HTi 200
Ref.: 12057/0200
The HTi is a multichannel control unit with touch display and data recording.
For 2 heating systems or warming plates.
Your benefits
- Easy-to-read touch screen display: providing a good view of the actual temperature, also from a distance
- Ideal size: small footprint to fit in the smallest laboratory
- Data logging: measurement data can be logged and stored as the device is equipped with an SD-card that records temperature values over a long time period
- Extended options for combination: all HTi versions can be combined with any Minitube heated microscope stage, Minitube warming plate and bead bath
- Maximum connection safety: control units from Minitube are equipped with a 9-pole SUB-D connection system
- Easy to keep clean
Product features
- With 4.3" touch screen
- Freely adjustable temperature range up to +55°C (131°F), control accuracy: +/- 0.1°C
- Data logging with SD card
- Microprocessor control
- Alarm function in case of deviation from temperature set point
- Power output, total [W]: 220
- Dimensions: 155 x 100 x 150 mm
- Electrical connection: 115 V/60 Hz - 230 V/50 Hz
